Infrastructure Portfolio

Infrastructure in Action – Real World Projects

📌 About This Portfolio

This is a self-built lab simulating a real enterprise environment. It includes domain controllers, cloud sync (Azure/Entra ID), certificate services, Docker apps, and group policy. All deployed to reflect how real IT systems are designed, secured, and maintained.

I built this infrastructure to gain hands-on experience beyond theory, and everything here is structured like a real-world setup — just without real company data.

This is my personal Infrastructure— no real company data shown

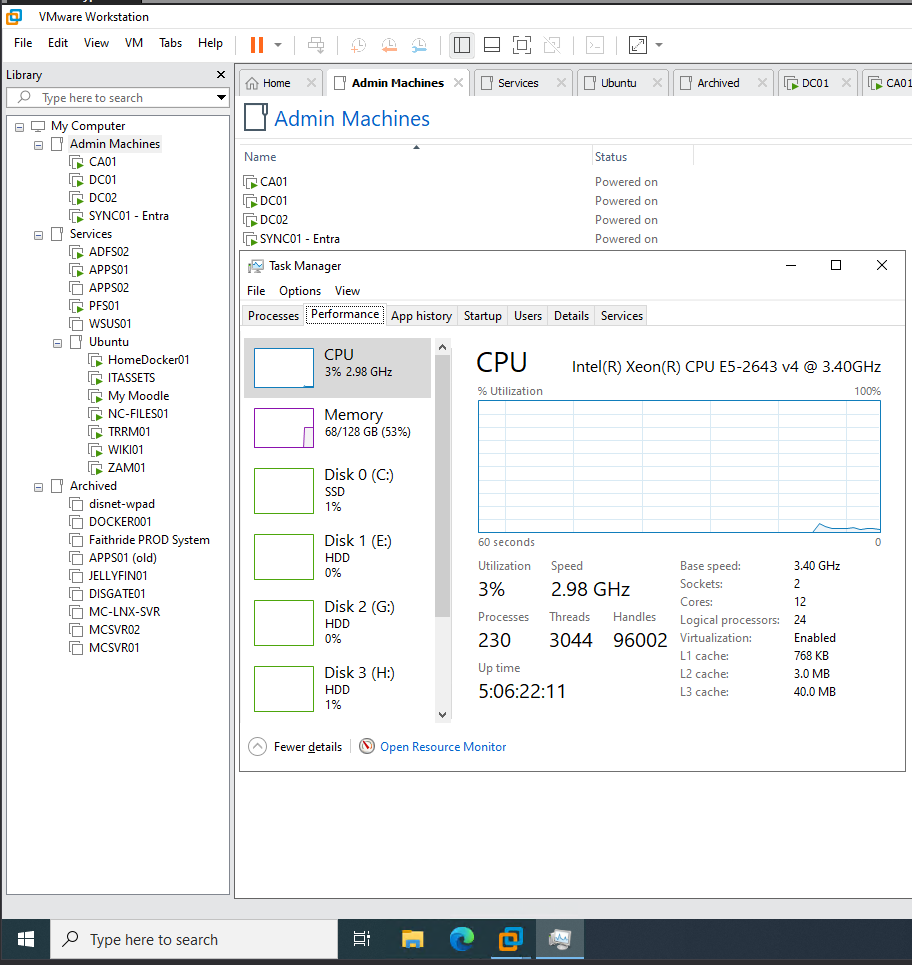

Hardware

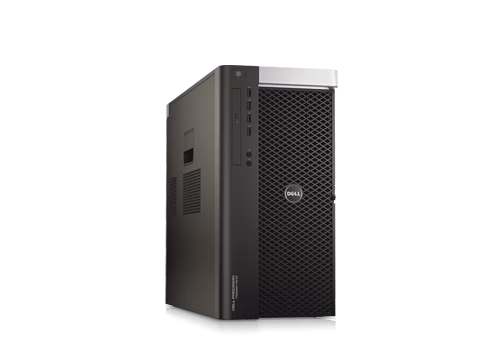

I run a powerful Dell Precision T7910 workstation designed for heavy workloads and virtualization.

  • Processor: 2 × Intel Xeon E5-2643 V4 @ 3.40GHz (12 cores total)
  • Memory: 128GB ECC RAM for high performance and stability
  • Storage: 8TB Storage
  • Use case: Hosts virtual machines, containers, file servers, and lab infrastructure

This robust setup allows me to simulate complex enterprise environments with reliability and scalability

Services I run:
  • 2 Domain Controllers
  • ADCS with Certify for CA/SSL
  • ADFS Server
  • WSUS Server
  • File Server (Network Drives tied to Group Policy)
  • 2 Application Servers (IIS, PHP, MariaDB, Redis)
  • Docker Server (Portainer for dashboards & light apps)
  • SharePoint Server
  • Moodle LMS Server
  • NextCloud Server
  • Zammad Server
  • Tactical RMM Server

Active Directory

I’ve designed and deployed a production-style Active Directory environment that reflects real enterprise practices and standards.

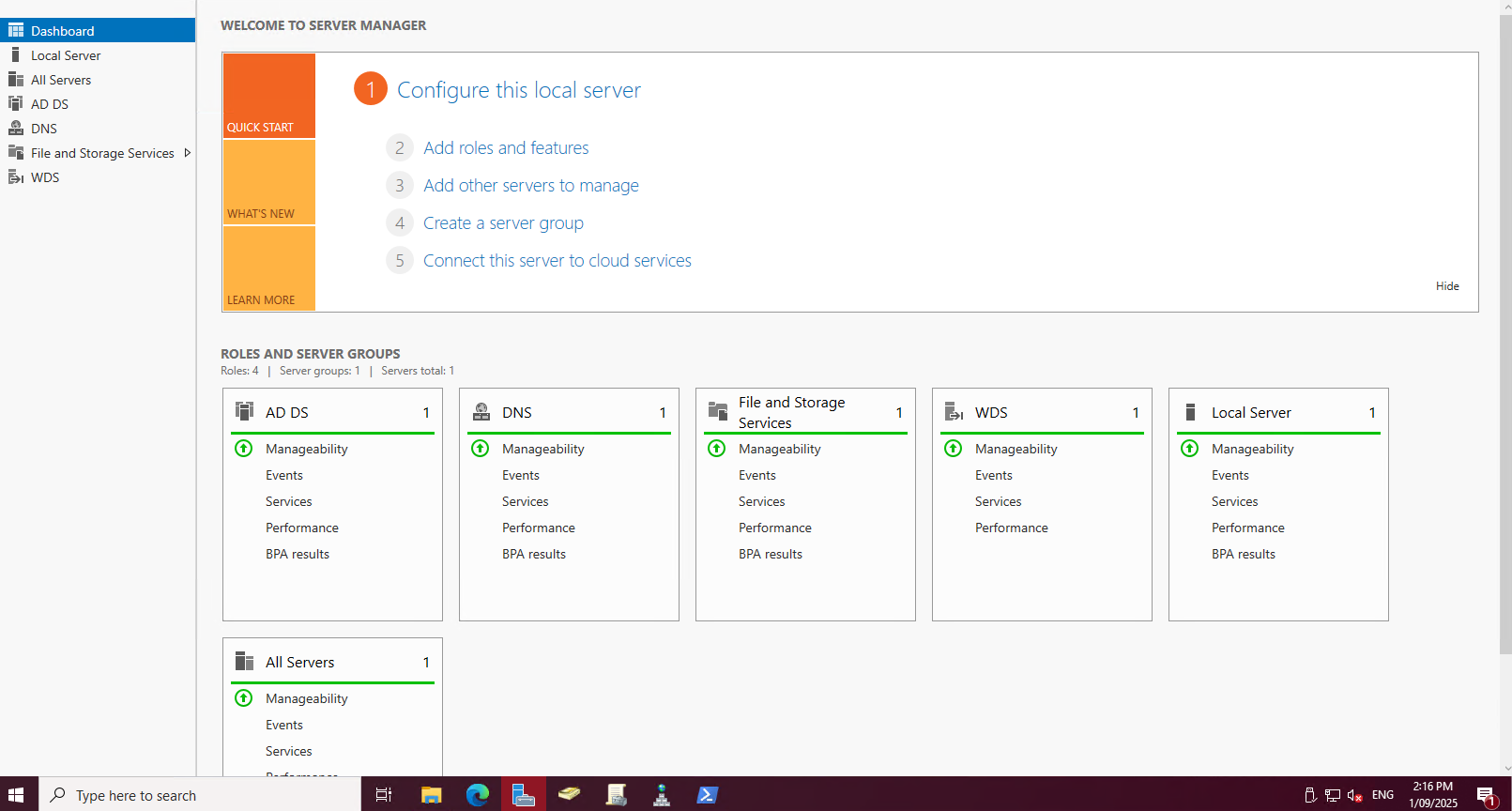

  • Redundant Domain Controllers: Two DCs provide high availability and ensure reliable authentication and directory services across the lab environment.

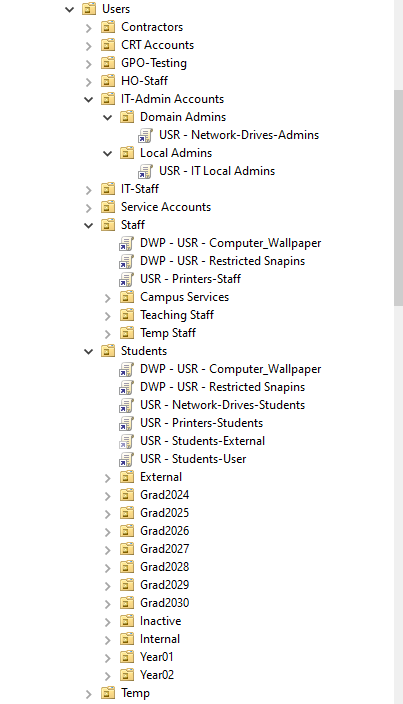

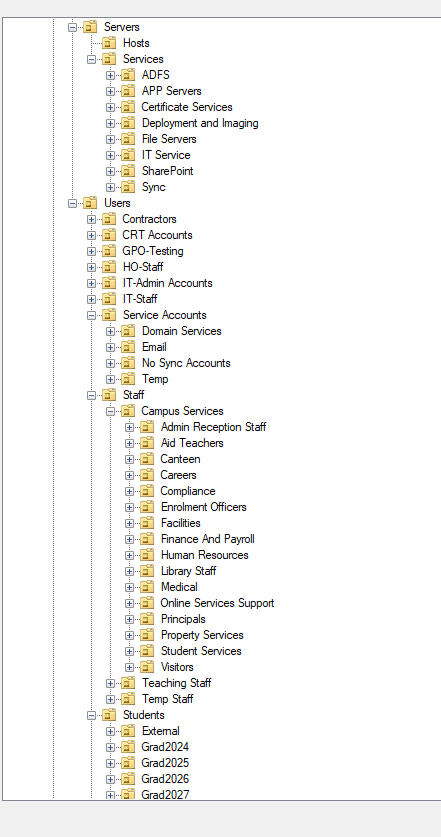

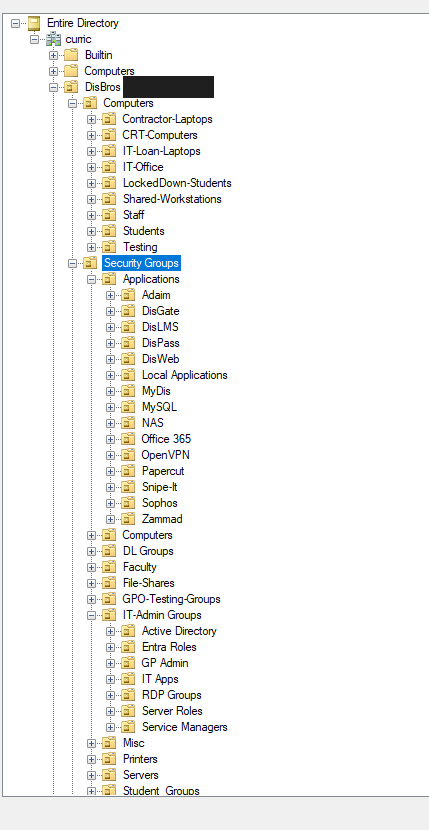

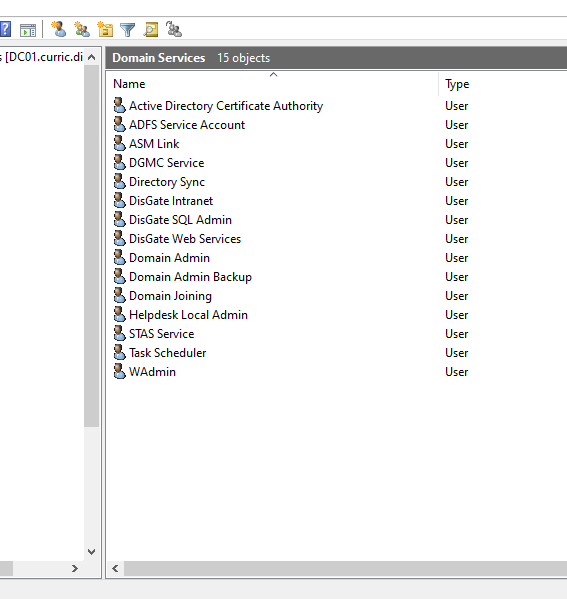

  • Organizational Structure: OUs are logically organized by object type including Users, Computers, Servers, and Security Groups making the environment easy to manage and scale.

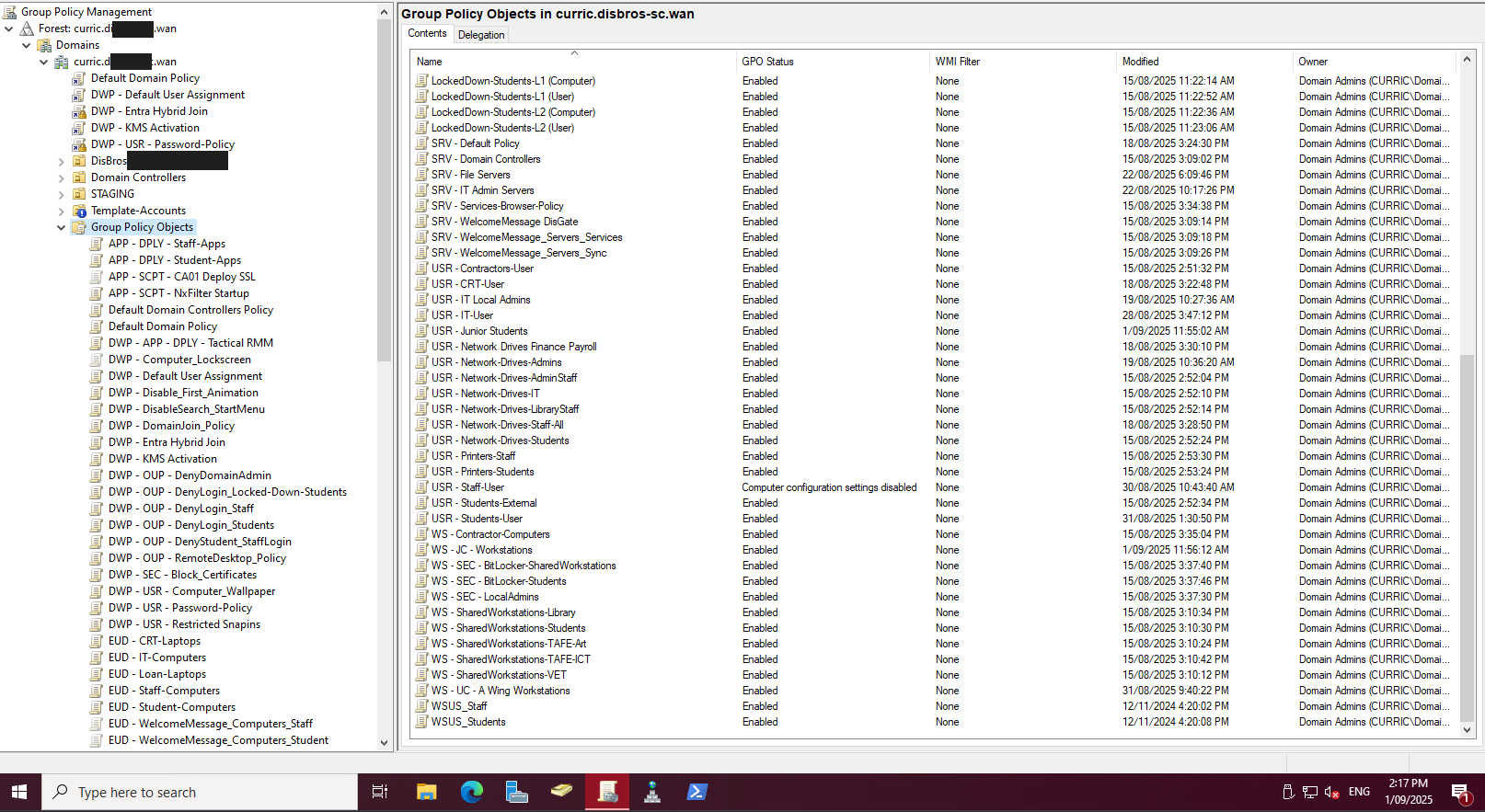

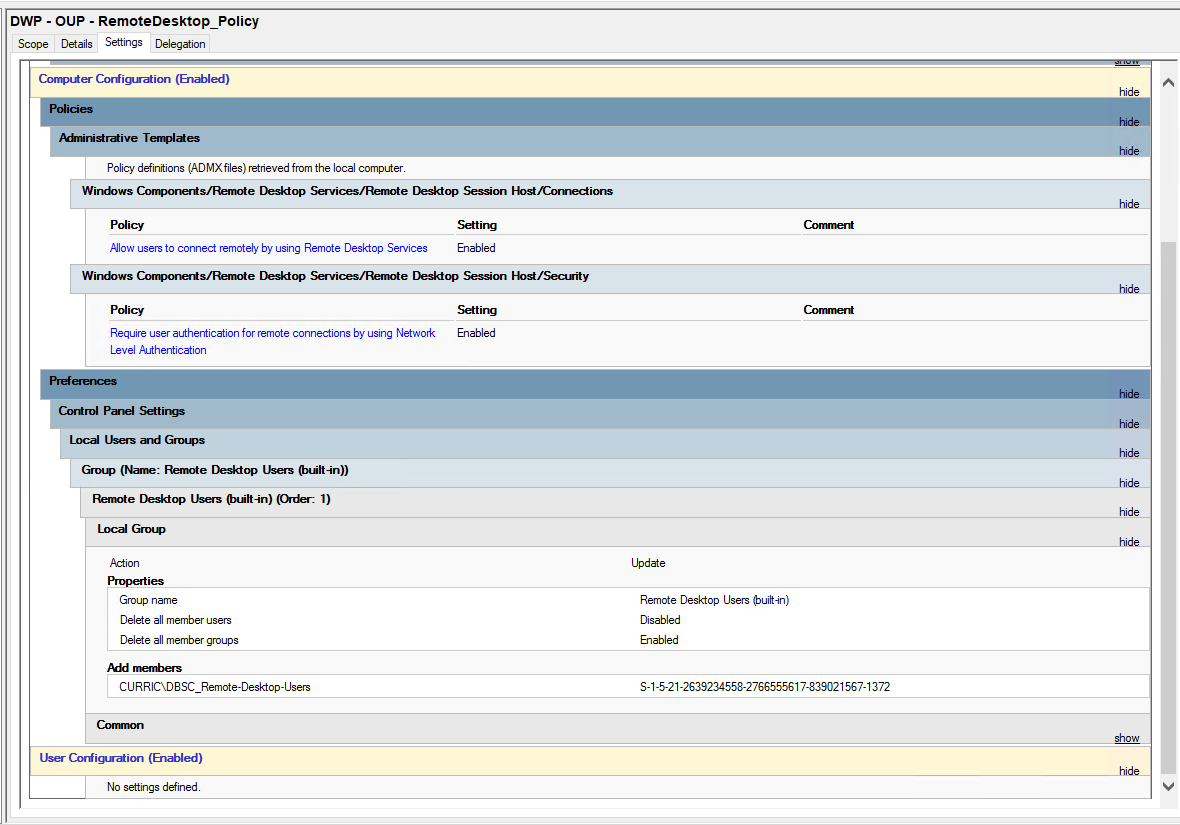

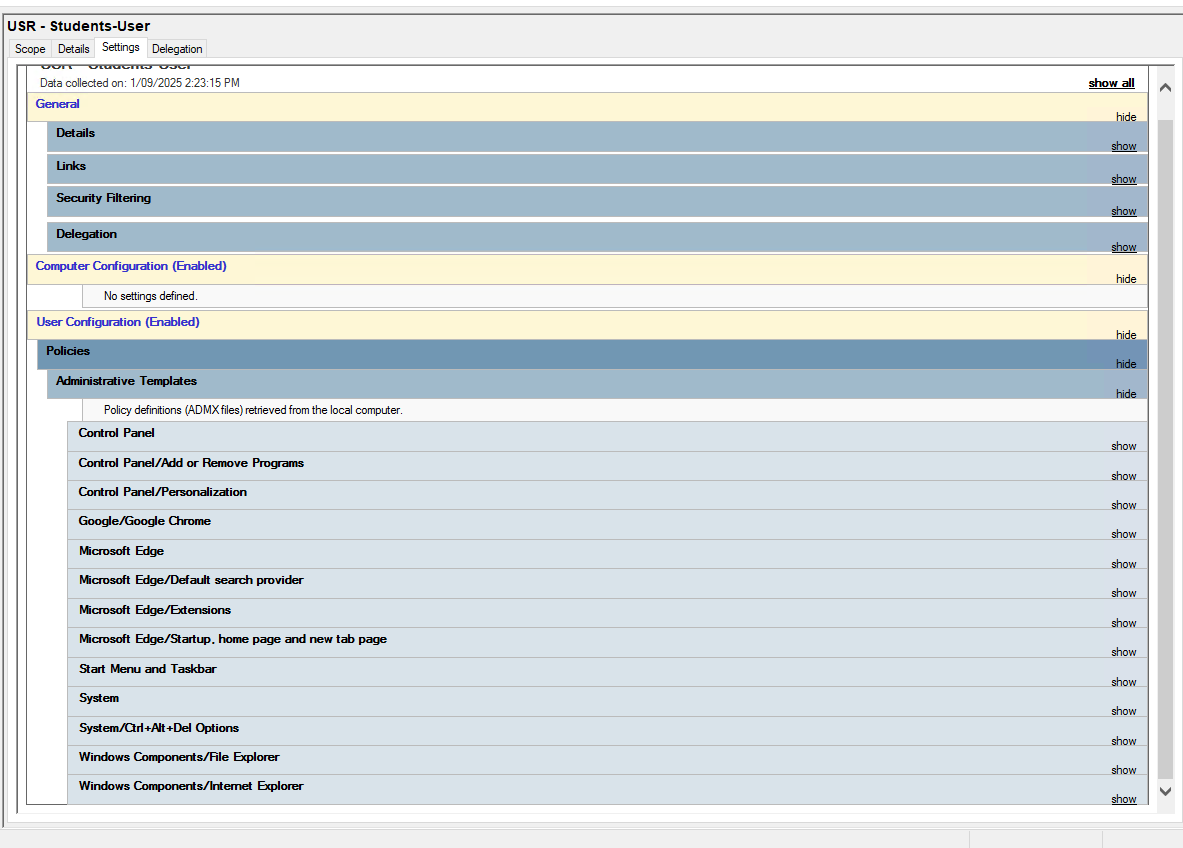

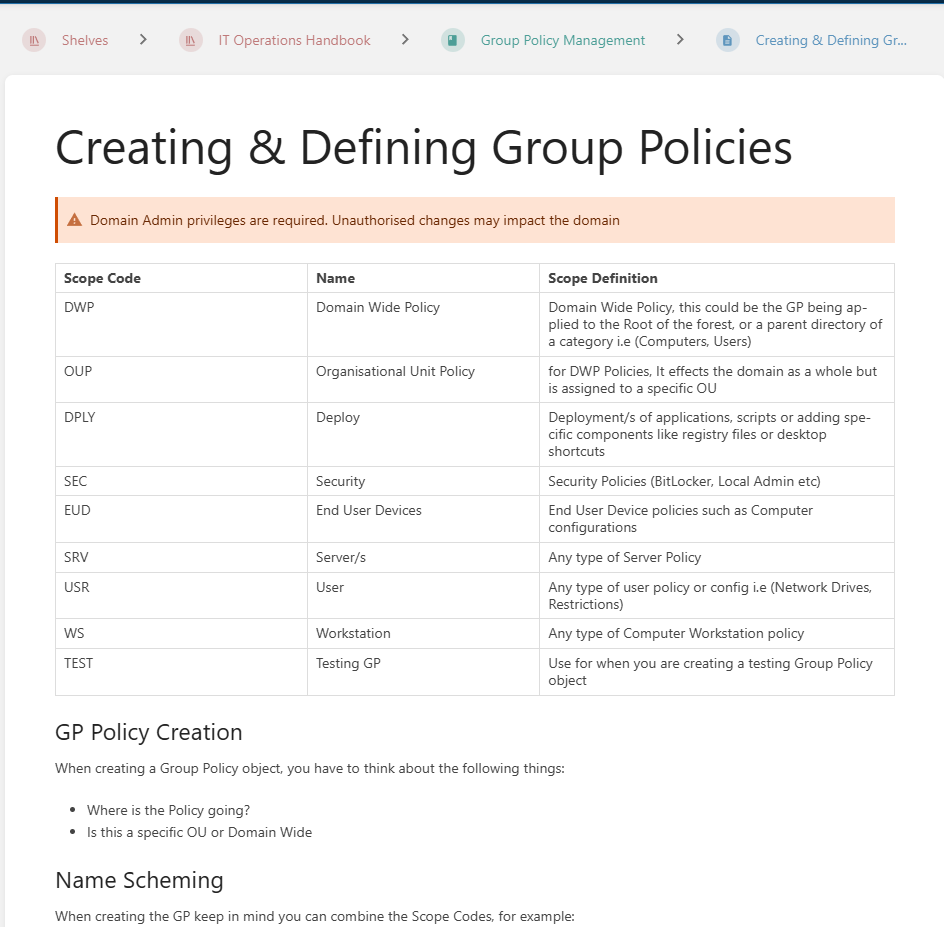

  • Group Policy Strategy: All GPOs follow a structured naming convention using category codes for clarity and consistency. Examples include:
    • DWP - Domain Wide Policy
    • EUD - End User Device
    • USR - User Policy
    For instance, a domain-wide certificate block policy would be named: DWP - SEC - Block Certificates.
  • Security Groups: I simulate real organizational roles with SGs for users, faculty, and application access. These groups are used for permissions management and integrated into services via LDAP.
  • LDAP Integration: Active Directory is used as the identity source for platforms like Zammad, Moodle, and internally developed applications.
  • Certificate Services: AD Certificate Services (ADCS) is deployed to manage internal certificates for secure authentication, LDAPS, and HTTPS services.

This setup gives me hands-on experience with real-world AD design, management, and integration — all following structured and scalable IT practices.

Entra & Hybrid Identity

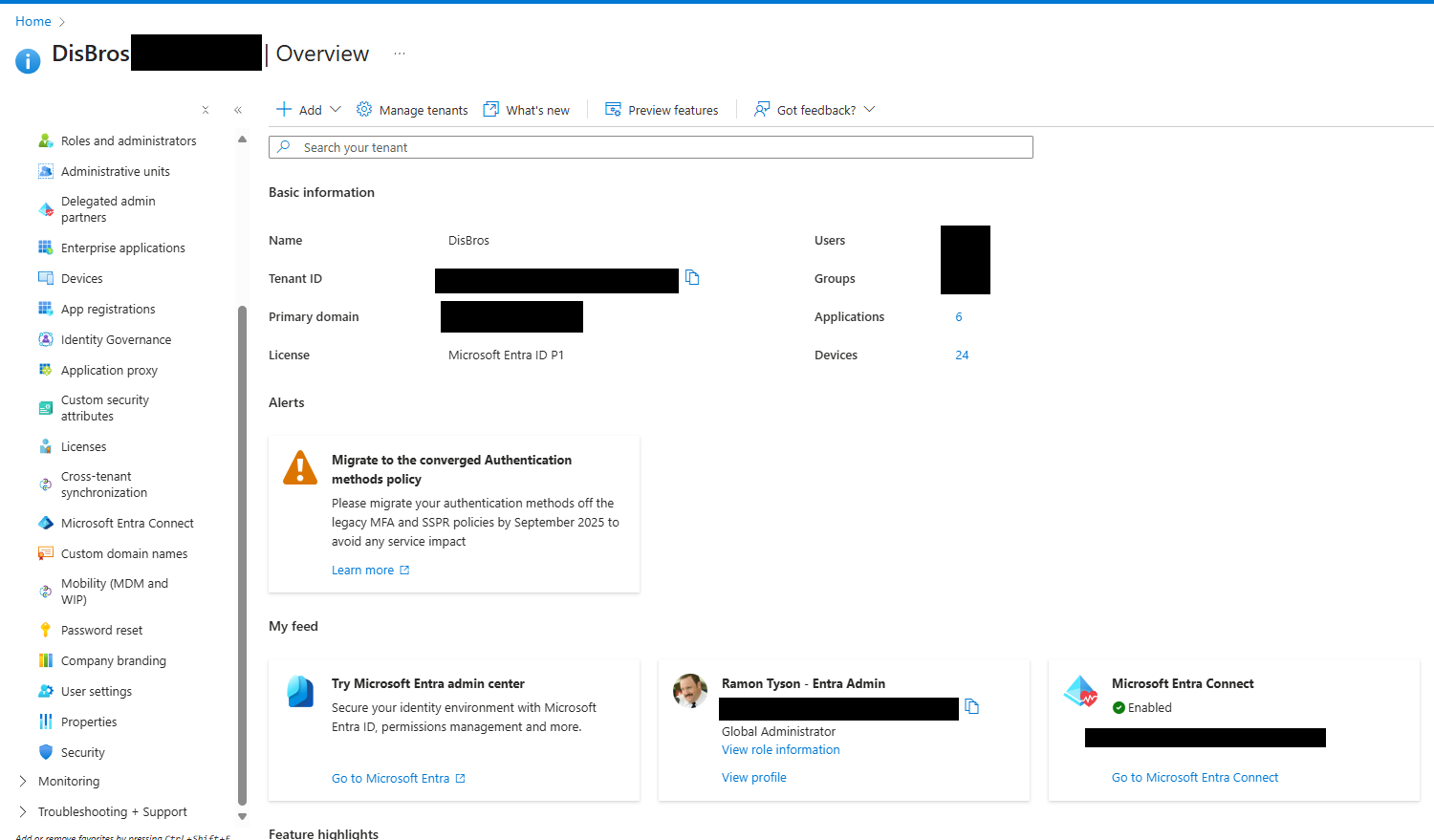

I simulate a hybrid identity setup using Entra ID (Azure AD) connected to on-prem AD for realistic cloud integration.

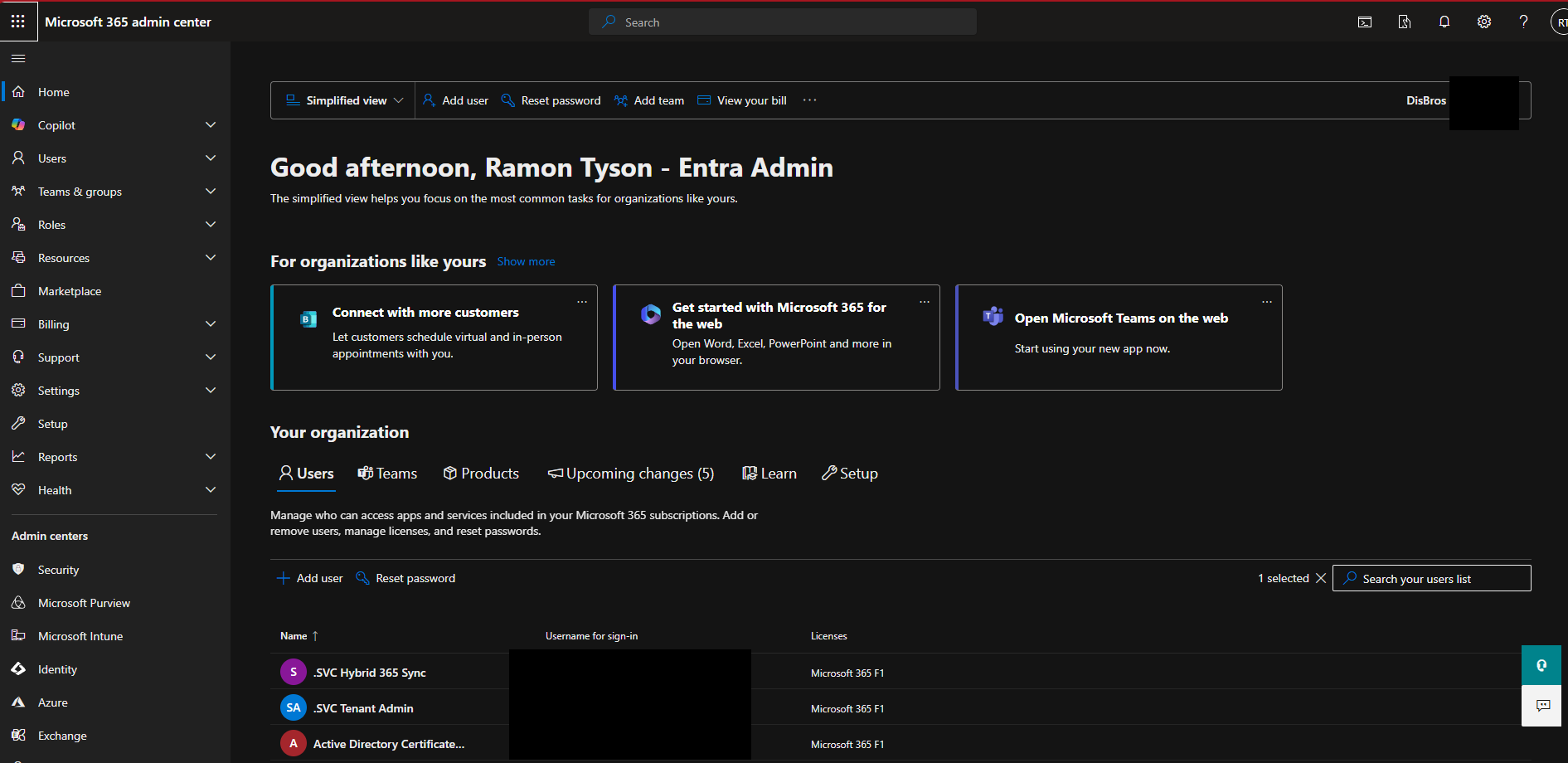

  • Microsoft 365: Licensed tenant for testing SharePoint, Exchange, and user access
  • SharePoint: Department sites with group-based permissions
  • Exchange: Mailbox creation and DL groups
  • Hybrid Identity: Entra Connect sync between AD and cloud

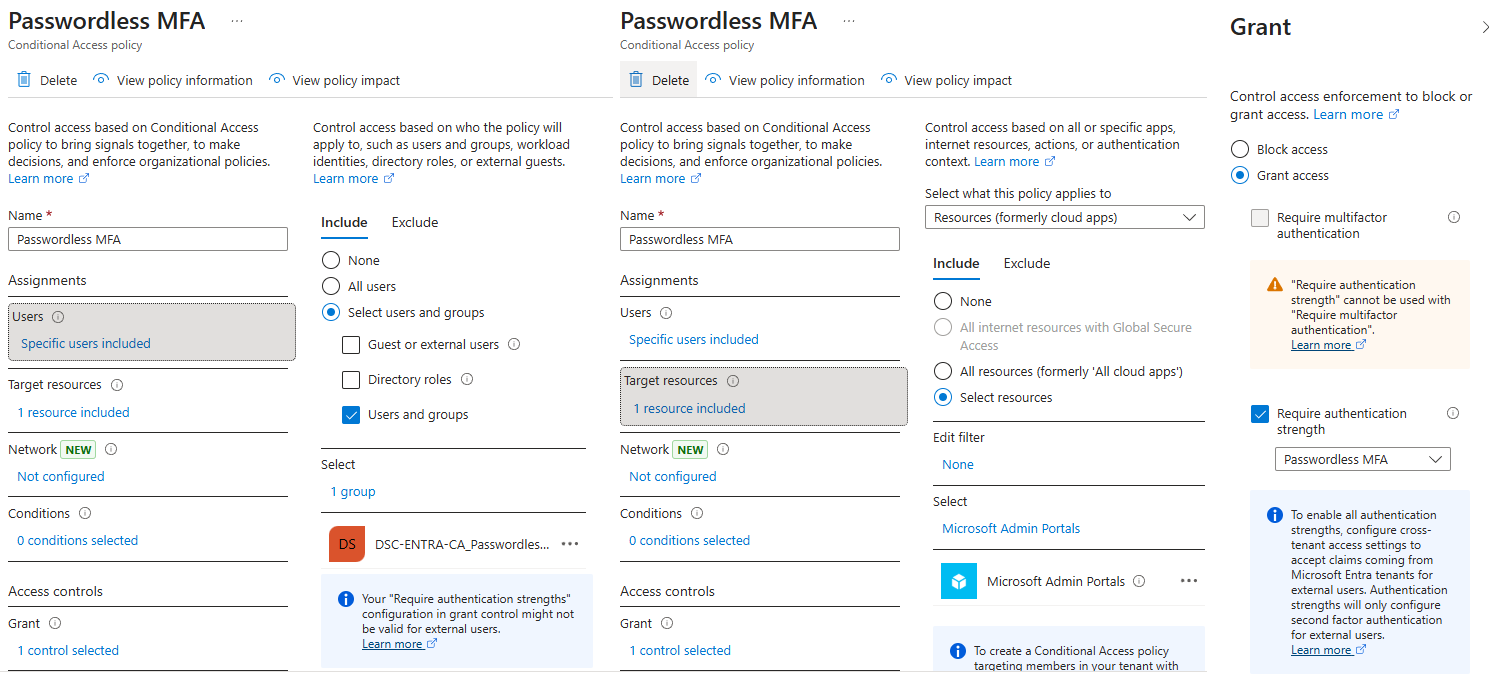

  • Conditional Access: Policies for MFA and app control
  • Intune: Exploring device management, compliance policies, and MDM

This setup helps me understand identity management across on-prem and cloud environments using real Microsoft services.

Local Services

I run a suite of essential local services to support my home lab and daily workflows, some managed via portainer or dedicated vms

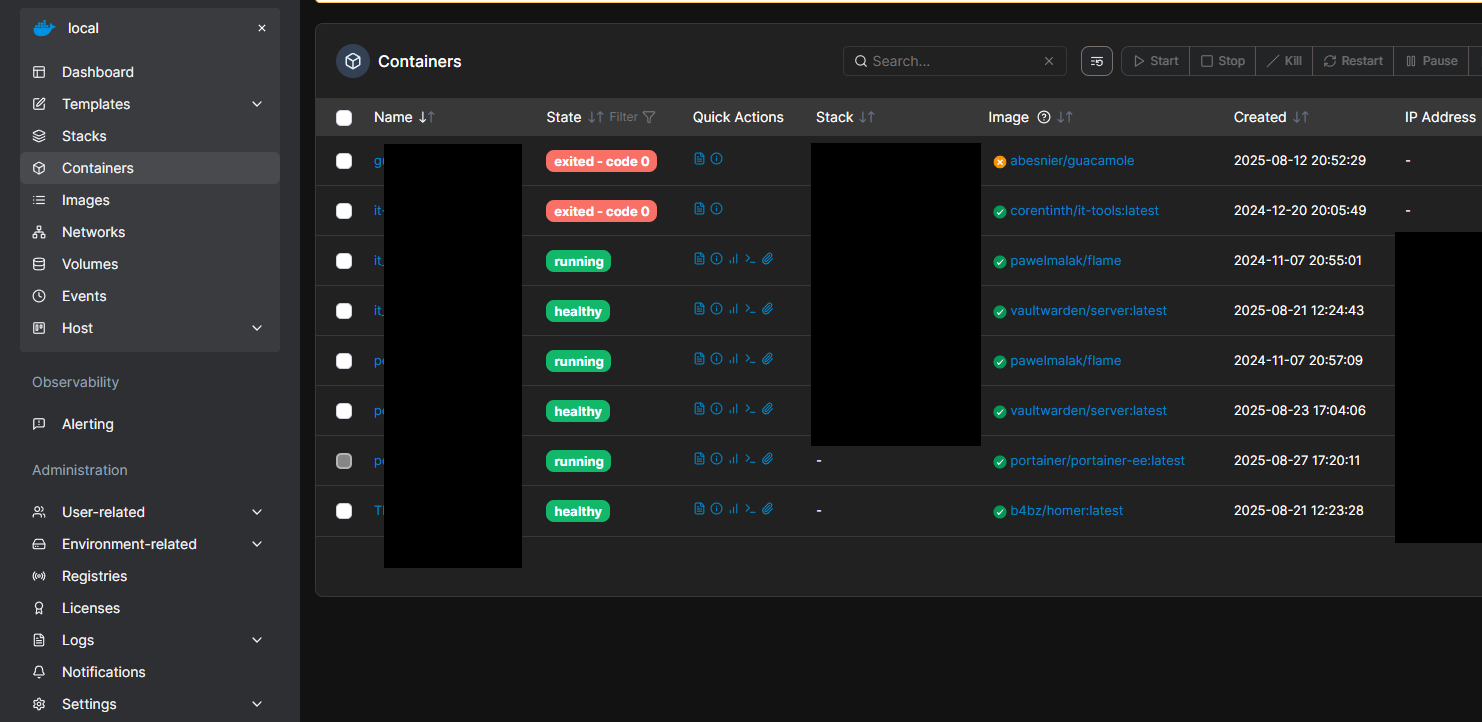

  • Portainer: Container management dashboard for Docker environments

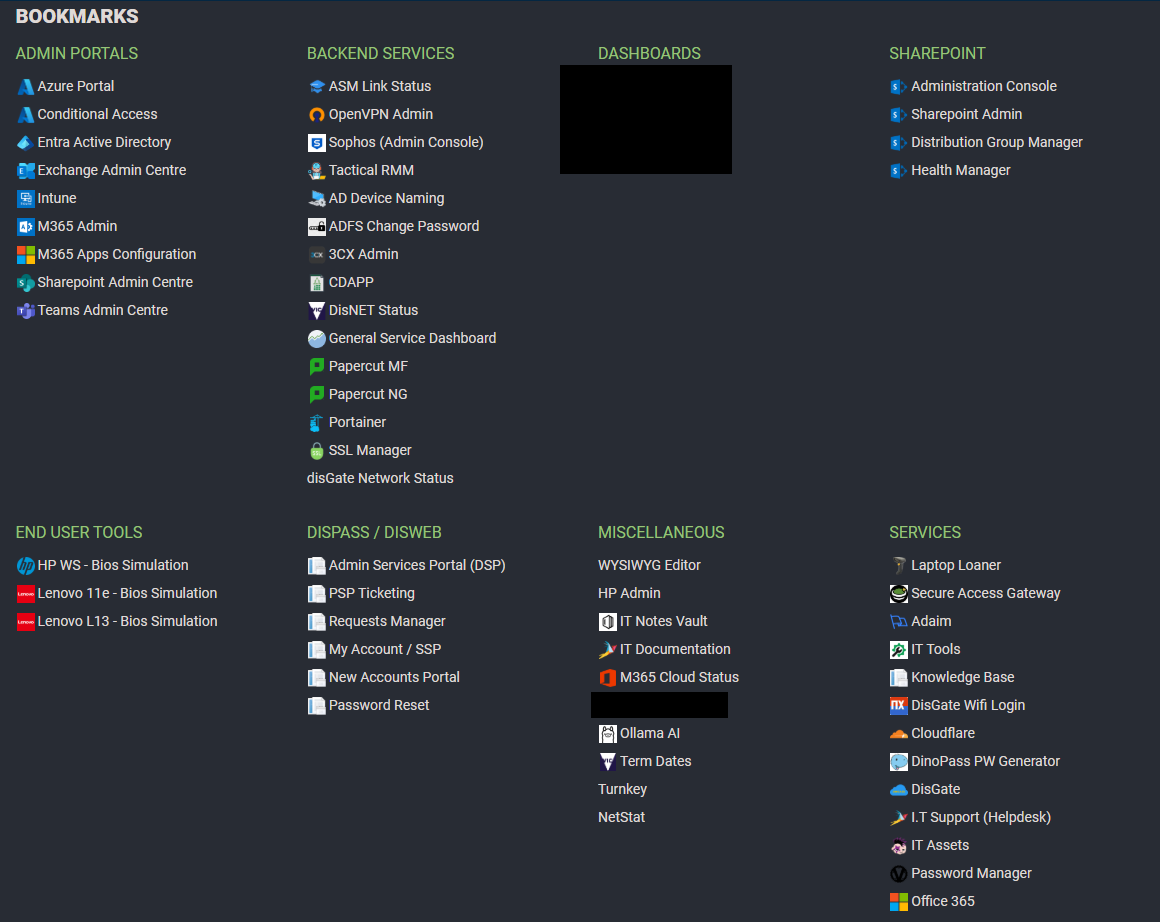

  • Dashboards: Centralized web dashboards for quick access to services (Flame)

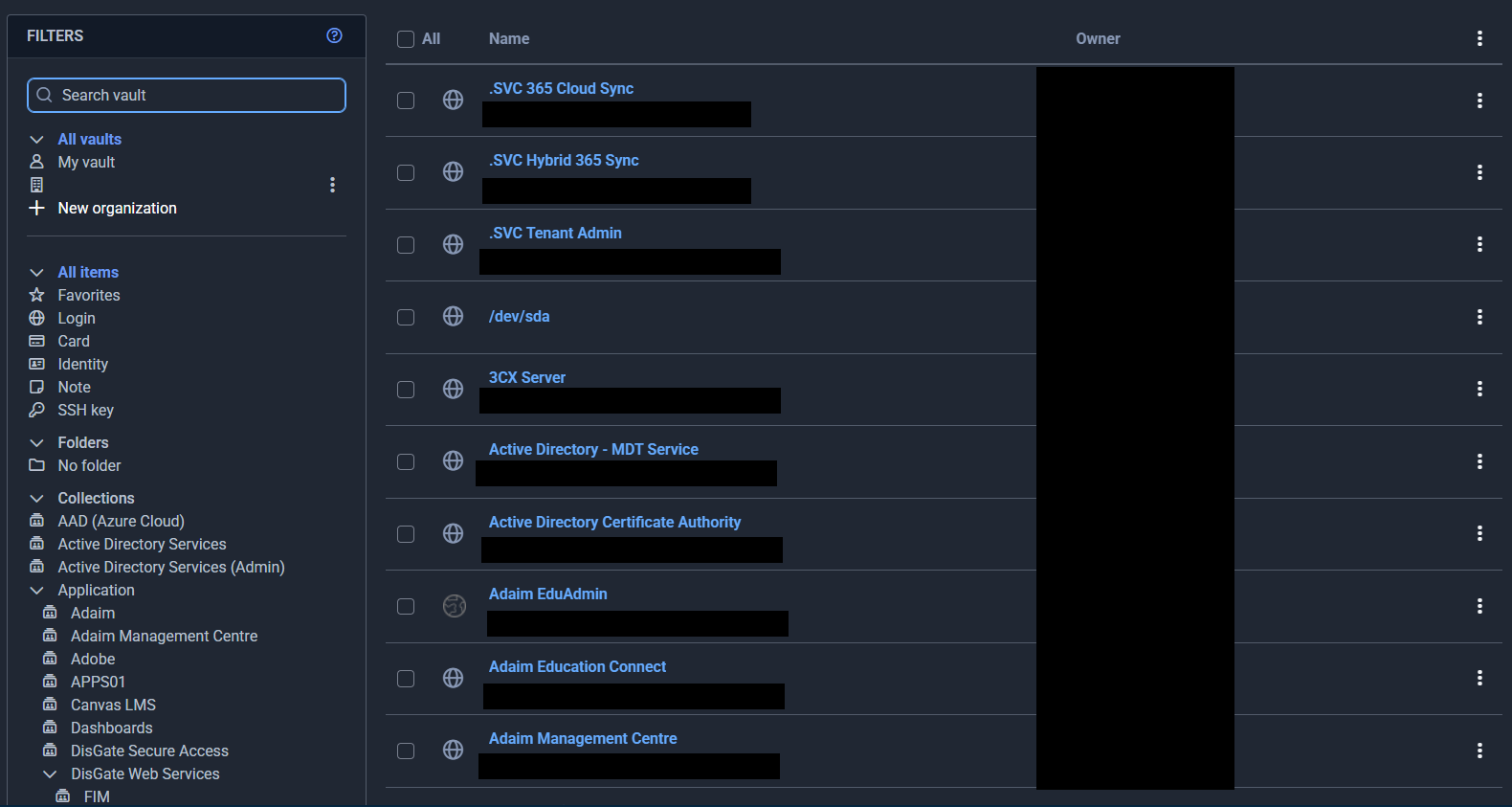

  • Vaultwarden: Self hosted Password Manager ensuring secure credential storage

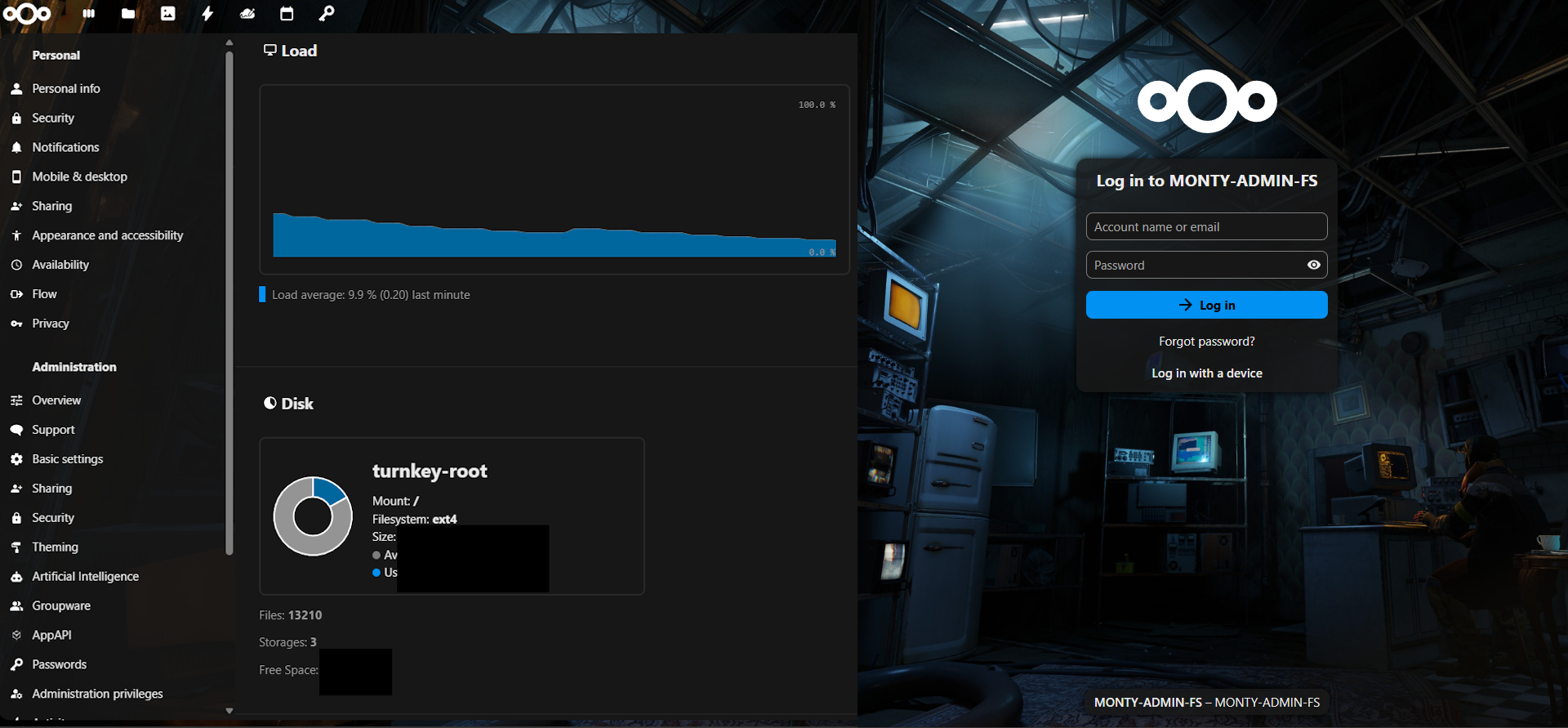

  • NextCloud: Private cloud file storage

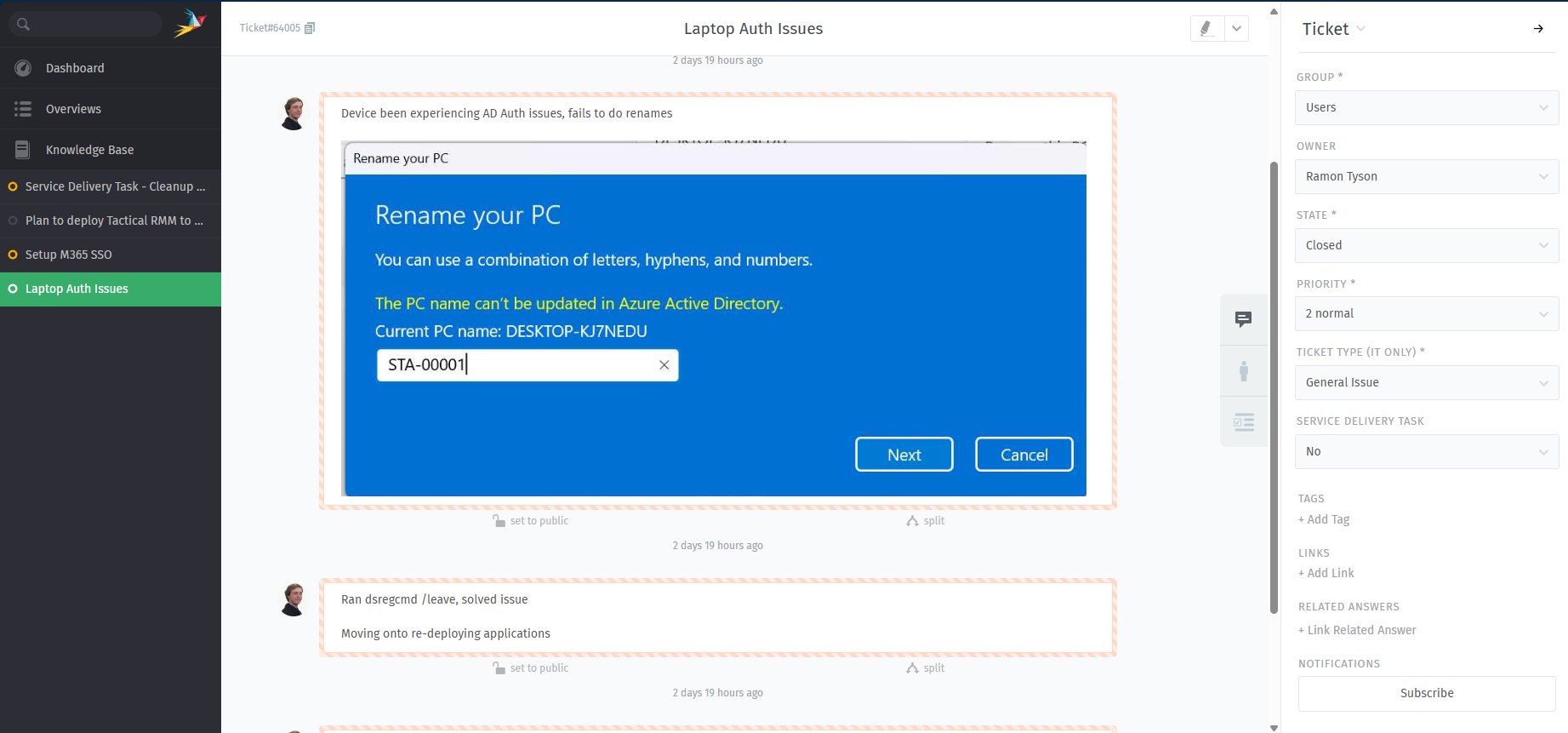

  • Zammad: Ticketing system for internal support and issue tracking
  • SnipeIT: Asset management for tracking hardware and software inventory

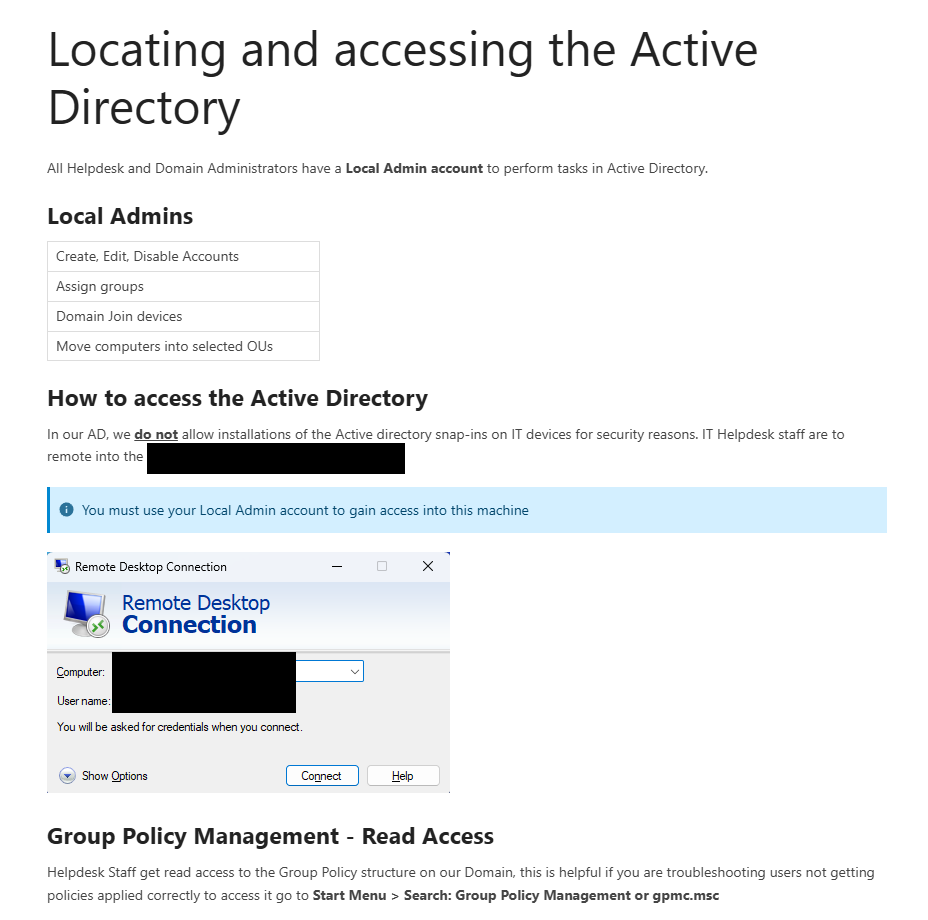

  • Bookstack Wiki: IT documentation and knowledge base platform

This ecosystem enables me to simulate enterprise-grade service management and maintain thorough documentation and asset control.

Driven by Passion

Everything shown here is part of my personal infrastructure,
built from the ground up out of curiosity, passion, and a drive to learn.

This isn’t about showing off, it’s about showing what’s possible when you really love what you do. I’ve
put in the time because this is what excites me, and I’m always learning more.

Thanks for taking the time to explore it!
